USB-A420F Video Surveillance Set
0 reviews

|
|

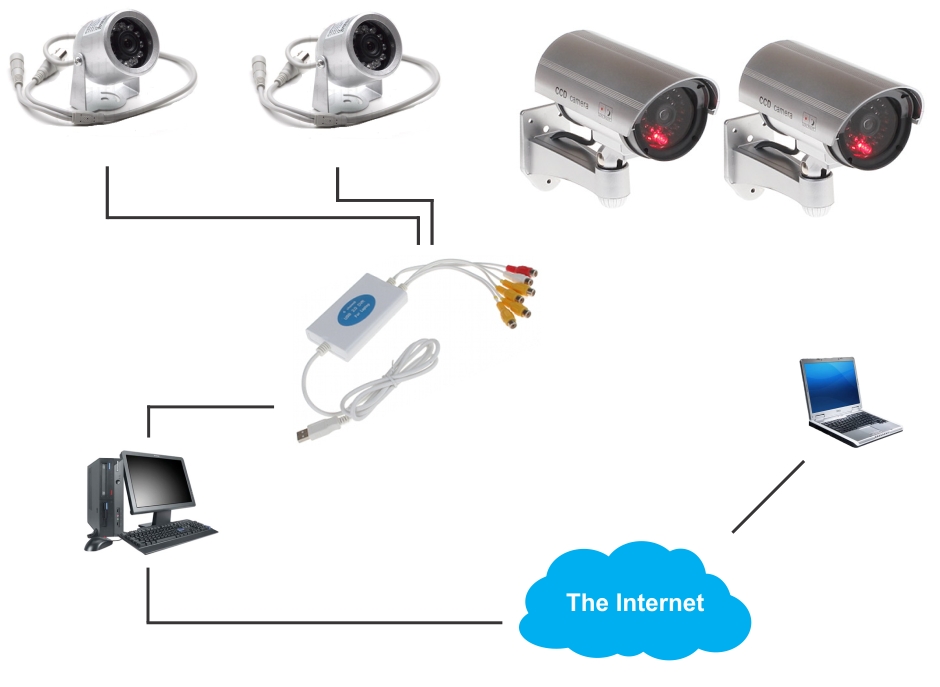

The USB-A420F set includes a compact and easy-to-use 4-channel USB DVR card that supports two color cameras and two fake cameras. With this set you perform video surveillance at affordable cost. |
USB-A420F is a unique 4-camera video surveillance system as it includes diverse camera types - two color cameras and two fake cameras, which allows performing video surveillance and decreasing expenses.
The A-420 cameras has a standard 3.6 mm lens and Sharp CCD sensor. Among its major features there is 420 TVL resolution, PAL video standard and Auto White Balance. The night vision (within 10 meters) is also supported thanks to 12 IR LEDs.
The fake cameras 102LED don't record video and are meant for scarying intruders away. This camera has got a red LED light powered by AA batteries. It looks exactly like a standard security camera.
The set goes with a USB DVR card that has got 4 video inputs and 2 audio inputs. The recording speed for one channel varies from 2 to 25 fps depending on image resolution. Both PAL and NTSC systems are supported.
USB-A420F set supports remote video surveillance over the Internet and has many helpful features such as motion detection, PTZ control, advanced search functions, etc.
4-channel Recording USB420 Card
Video Inputs: 4 CINCH
Audio Inputs: 2 CINCH
Video compression: MPEG4
Video System: PAL and NTSC
Recording Rate: 25frps 720x576 (1 ch); 4frps 720x576 (2 ch); 2frps 720x576 (4 ch)
Image Resolution: 52x288, 704x576
Embedded LAN card
Different recording modes
Dimensions: 105 x 60 x 20 mm
Weight: 140g
A420IR Cameras
Sensor: Sharp CCD
TV Resolution: 420 TVL
Image Resolution: 500H X 582V
Min. Illumination: 0 Lux (IR on)
IR LED diameter: 5mm
IR LED: 12 pcs
Lens: 3.6 mm
IR Range: up to 10 m
White Balance: Auto
Gamma Correction: 0.45
Backlight Illumination: Auto
Power Supply: DC12V±5%
Operating Temperature: -10 to +50 C
102LED Fake Cameras
LED indicator
2 x AA batteries
Weight: 0.340kg
USB DVR card
2 x A420 IR cameras
2 x 102LED fake cameras
100m cable
4 x RG59 connectors
